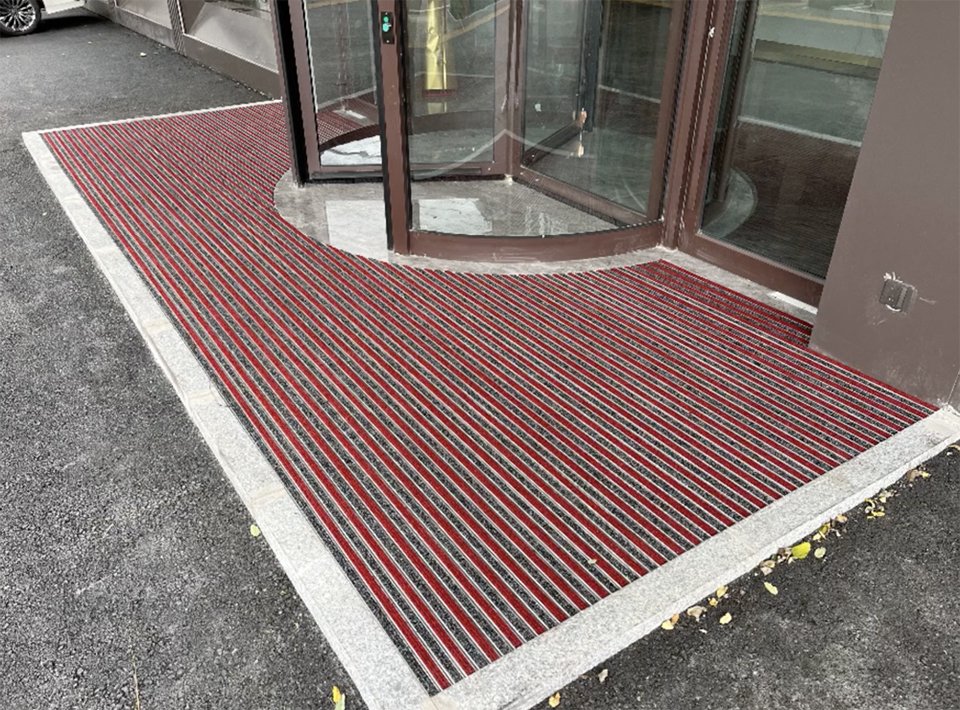

PB series Aluminum alloy entrance matting system
Aluminum alloy entrance matting system is combined with heavy duty carpet and aluminum alloy. Any size and shape can be made accordingly. Finished product can be wrapped and packaged into rolls. it had better be embedded into the ground groove. The mat has the strong dust removing ability after walked. 90% of the dirts can be collected in the groove when the mat installed.
Applicable area:

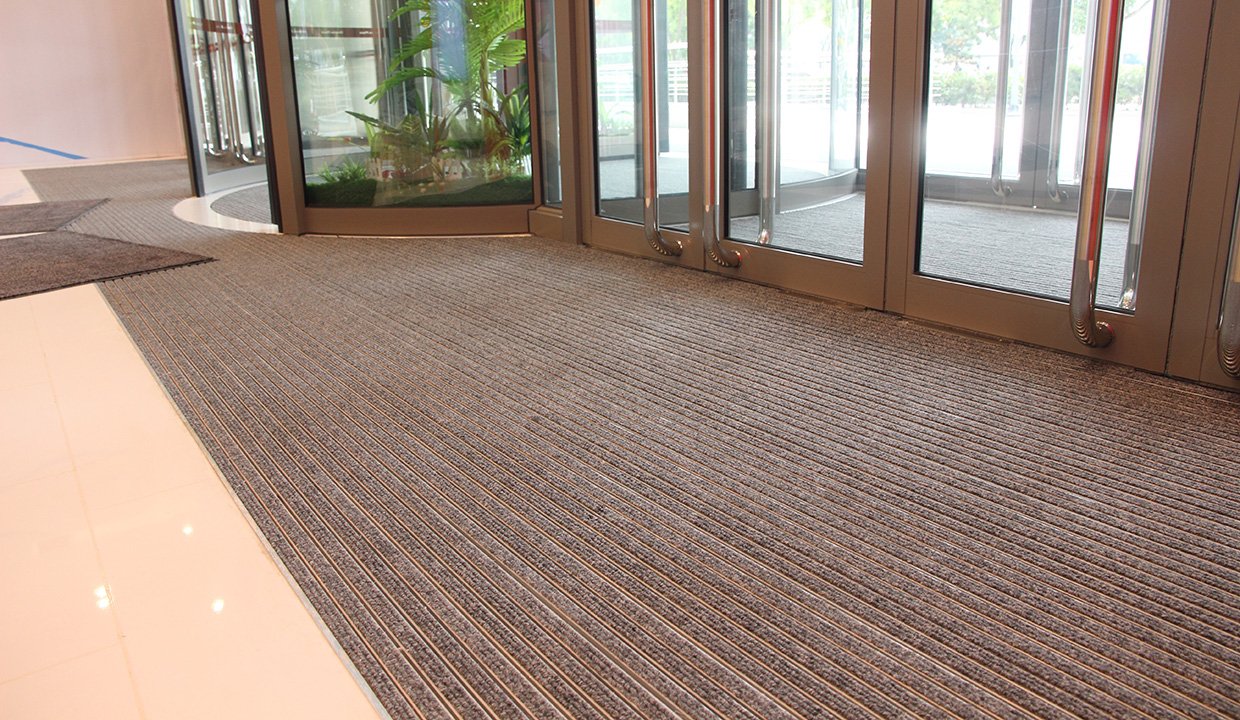

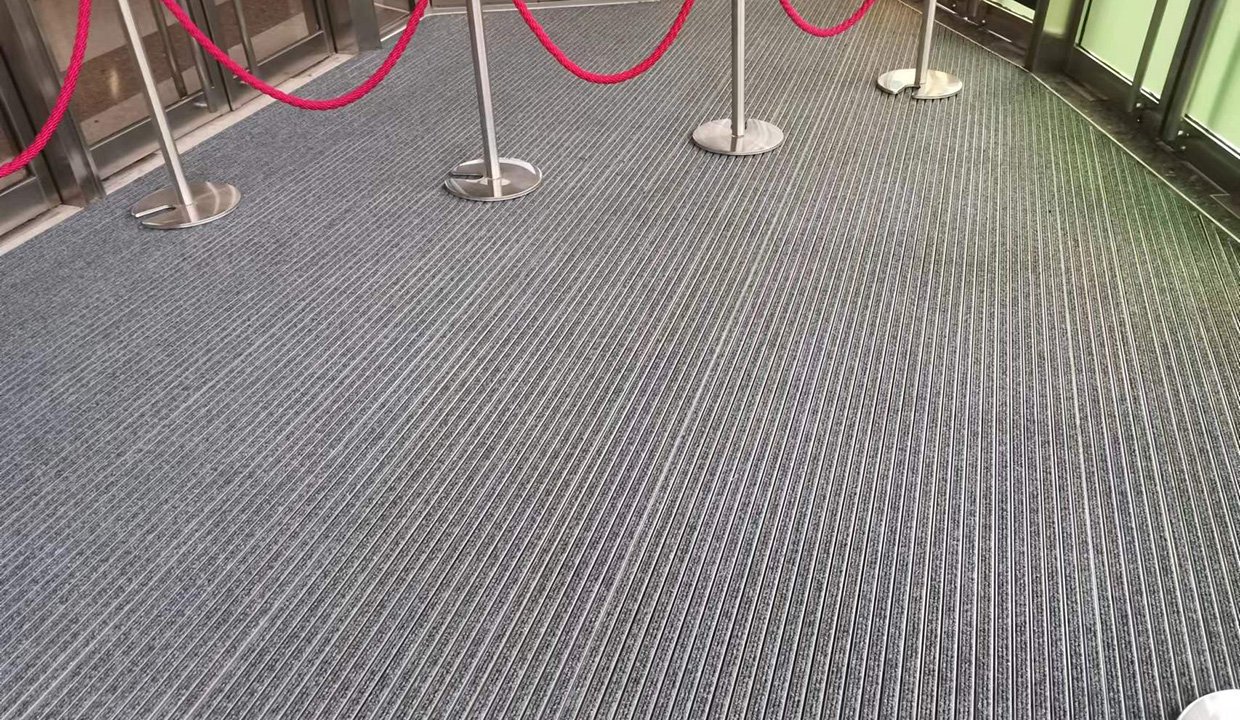

The mat is widely used in various environments and high traffic areas, such as families, villas, hotels, shopping malls, office buildings, airports, apartments, schools, hospitals, enterprises and other places.
The mat is assembled by steel wire rope with aluminum alloy frames, embeded into the ground groove. it has the strong bearing capacity and longer use life.
The carpet is used of Heavy Duty needle-felt imported from Belgium, reliable wear-resistance ability and color fastness. The carpet can be changed up to the choice you require. The aluminum edge frame can be added if necessary.

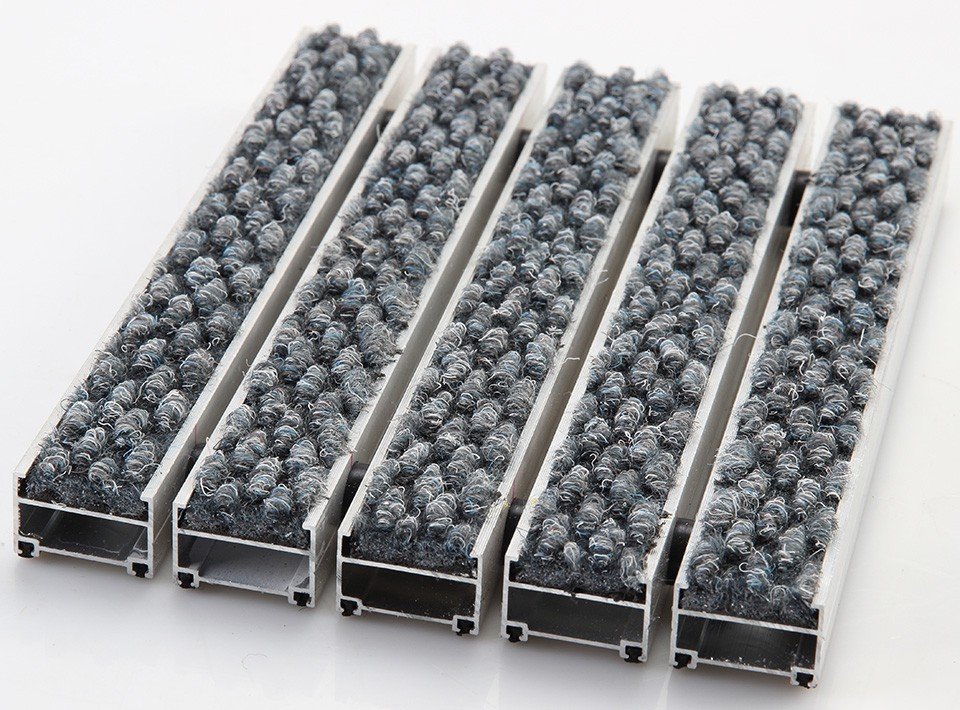

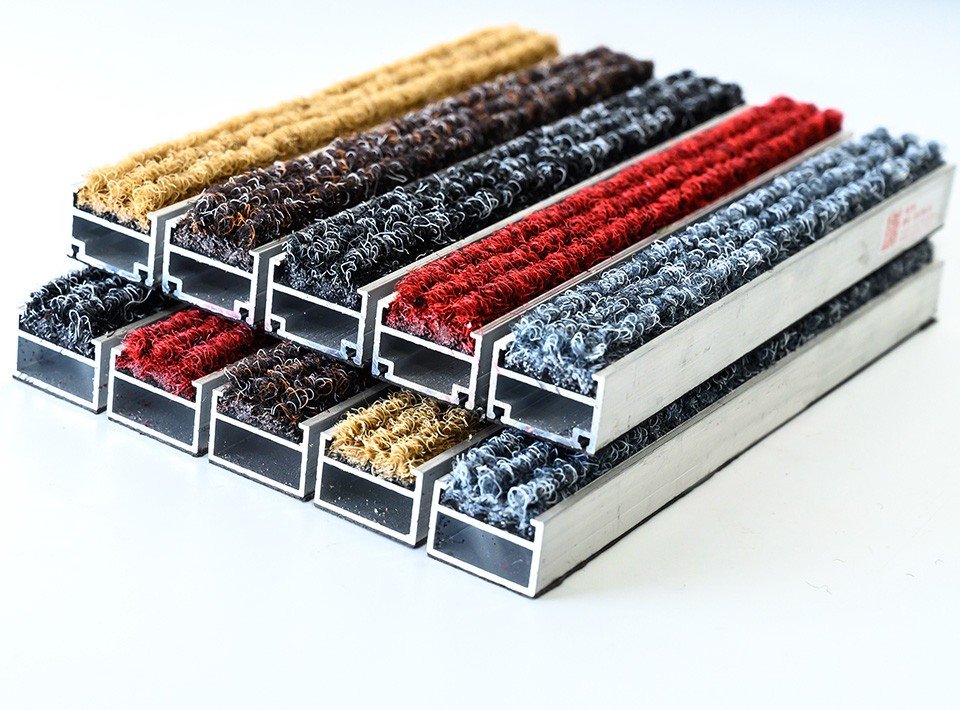

The mat is designed with aluminum alloy frames kept apart by rubber washer. The gaps between the aluminum alloys are used to collect the dirts. The mat can be easily wrapped into rolls when you have to collect and remove the dirts in groove. Convenience to keep cleaning.
The bottom of the frames is installed with buffering material, which can absorb the noise when people walking on it. The carpet in the frames can be changed into your style, we show the Calypso as below.

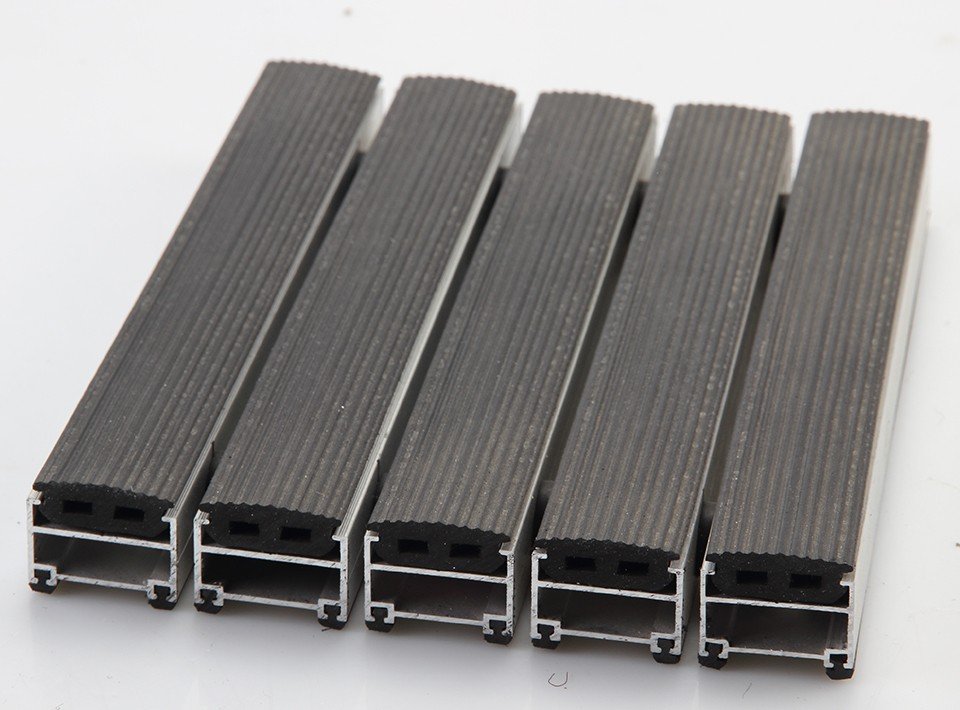

The rubber also can be designed into the surface of this mat, which will have more flexibility and wear-resistance. The use life will be longer than standard type.
Customization is accepted. The max length of mat will be 6 meters, any size exceed 6m will have to be made with segments. Irregular shape also can be accepted, such as Circle, Arc etc. Logo will possible can be made on the surface, it is helpful to make the entrance mat recognized when walking on it.

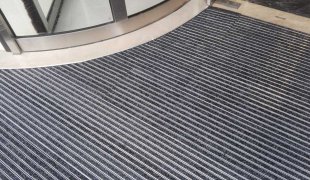

Aluminum Alloy mats show is in below link...
Product Character:
1.Aluminum Alloy Frames with Needlefelt or Rubber inserted, with strong wear-resistance and bearing capacity. This mat is suitable for installed into the ground groove with 20mm depth.
2.The needlefelt we used in the mat is imported from Belgium, reliable wear-resistance ability and color fastness.
3.The finished mat can be wrapped into rolls when you install or clean the dirt in the groove .

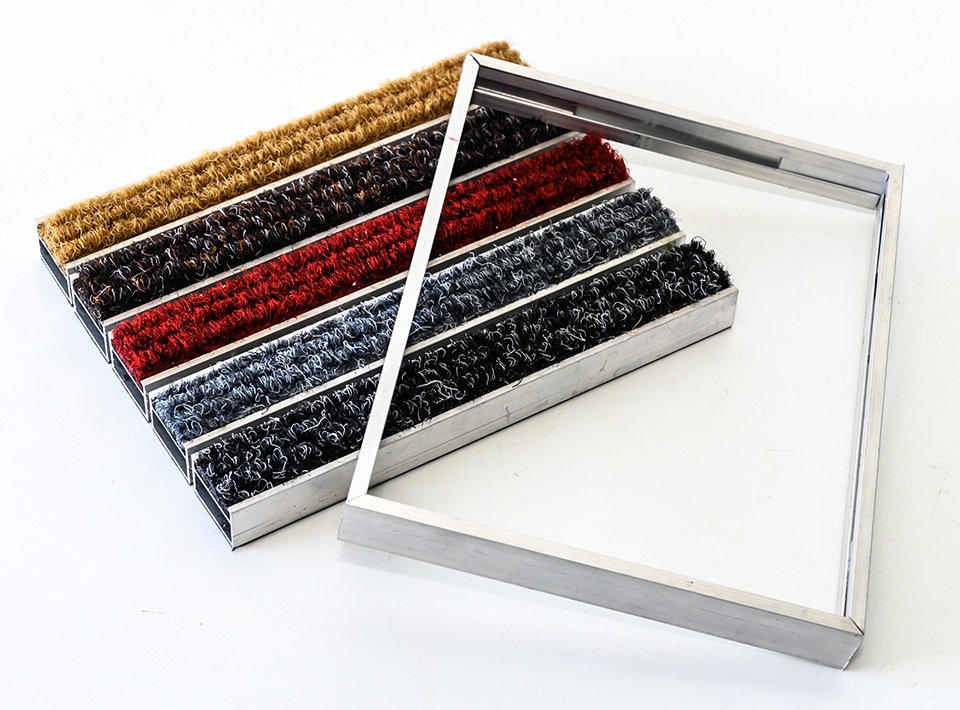

4.The aluminum alloy edge can be installed if necessary.

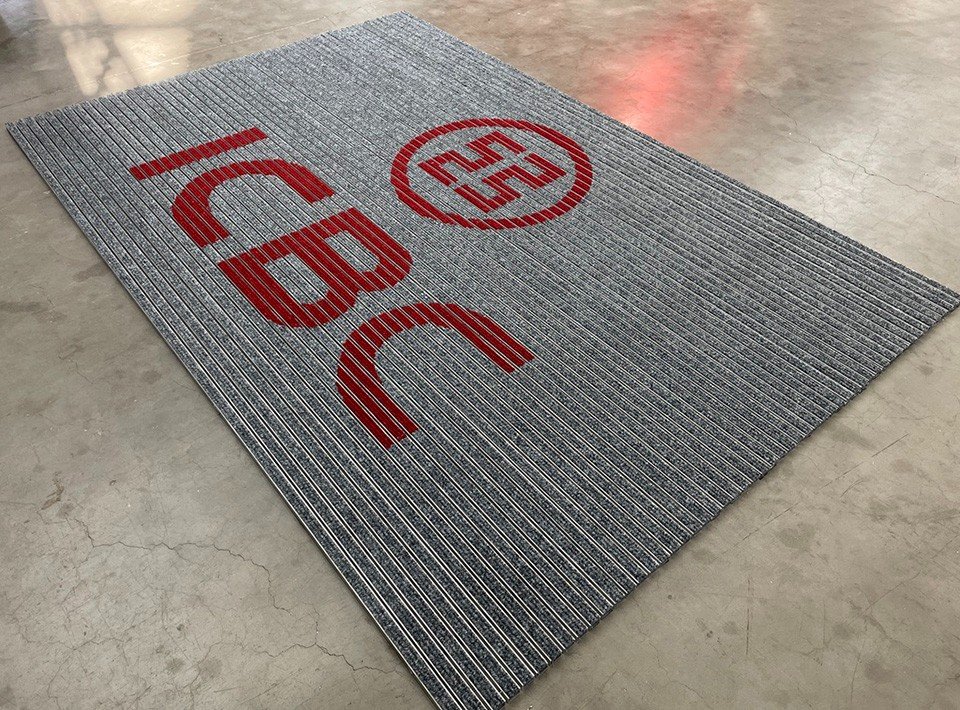

5.Logo can be made on the surface of the mat, making the mat easily recognized when walking on it.
6.The bottom of the frames is installed with buffering material, which can absorb the noise when people walking on it.

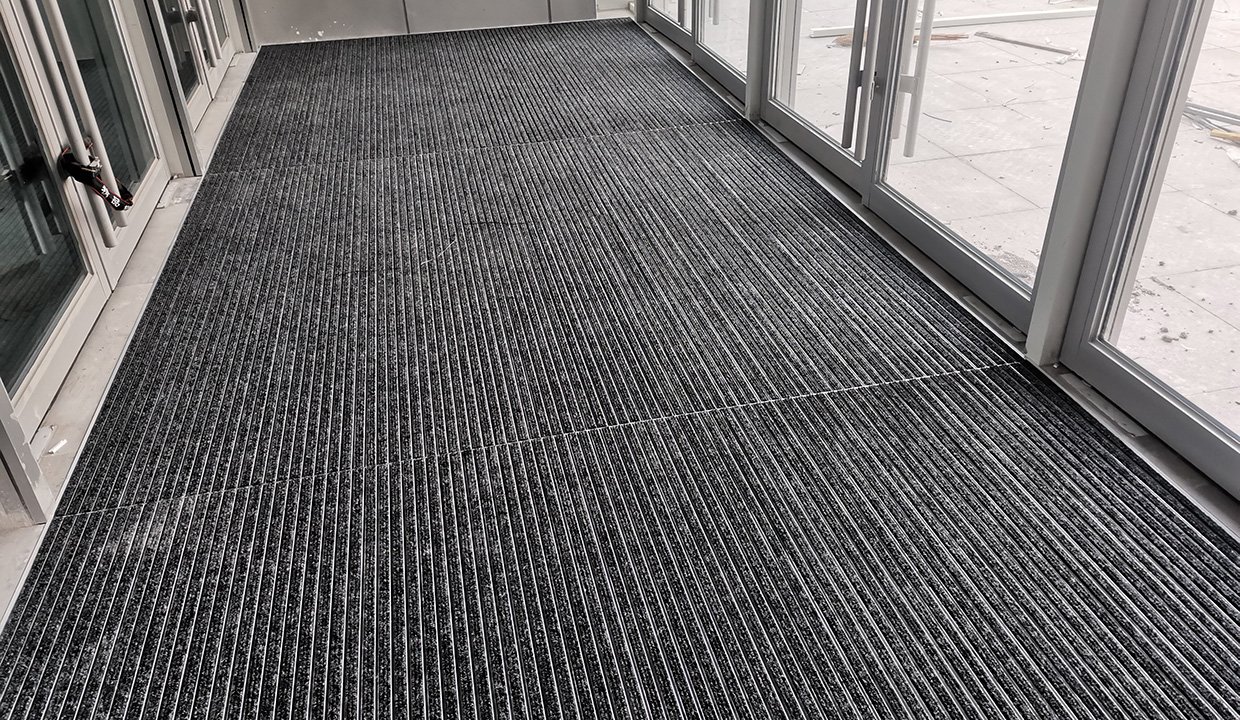

7.Max length is 6m. Any size exceed, the mat will have to be made with segments.

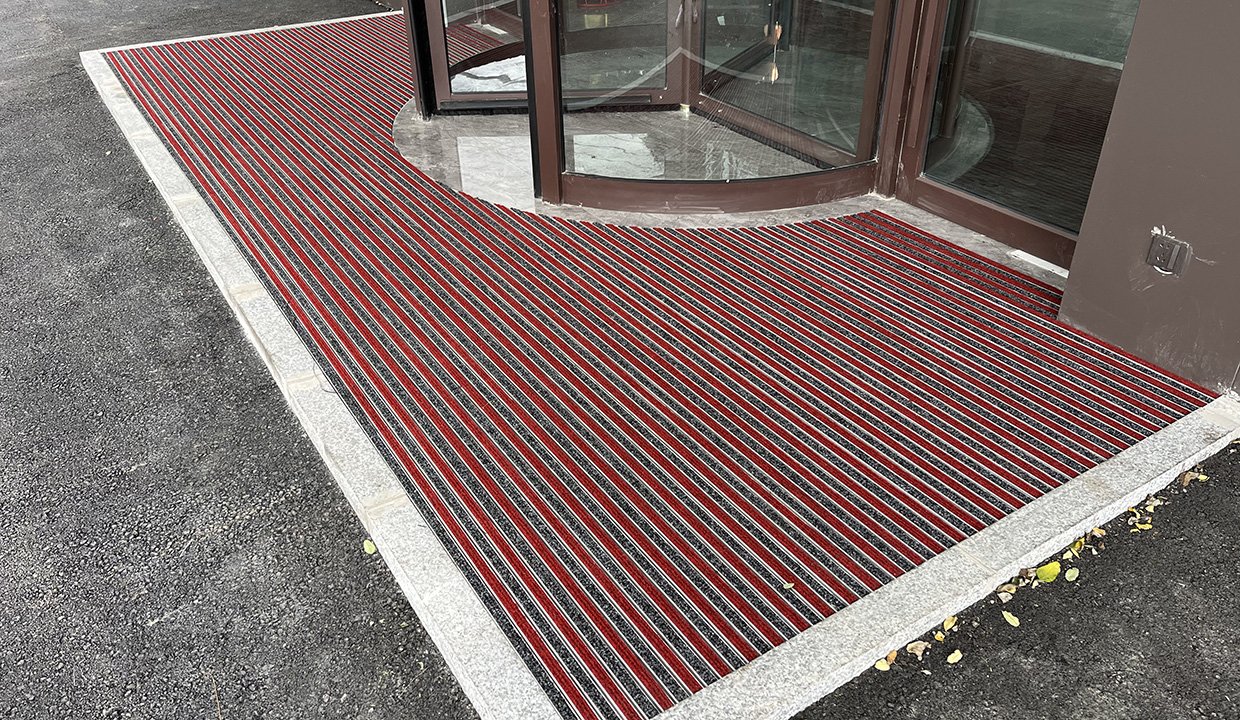

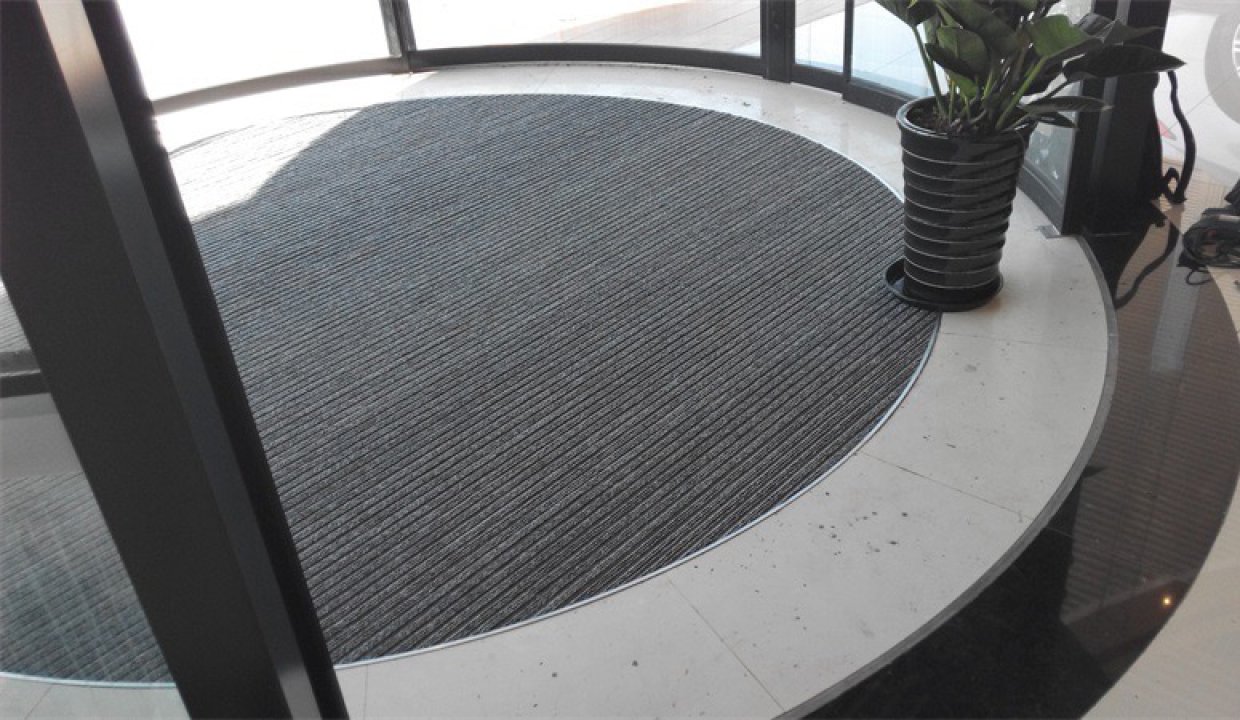

8.Irregular shape can be accpeted, such as Circle, Arc, etc.
Product specification:
| Item | Description |
|---|---|
| Frame | Aluminum Alloy 6063-T5 |
| Profile Thick(mm) | 1.0/1.2/1.5/2.0 |
| Carpet | Heavy Duty needlefelt (PP) /Rubber |
| Connecting | Steel wire (plastic coverd) |
| Backing | Buffering material (EVA) |
| Total Height(mm) | 20+/- |
| Load Capacity(Kgs/m2) | 1000~3000 |
| Notch Depth (mm) | 20 +/-2 |

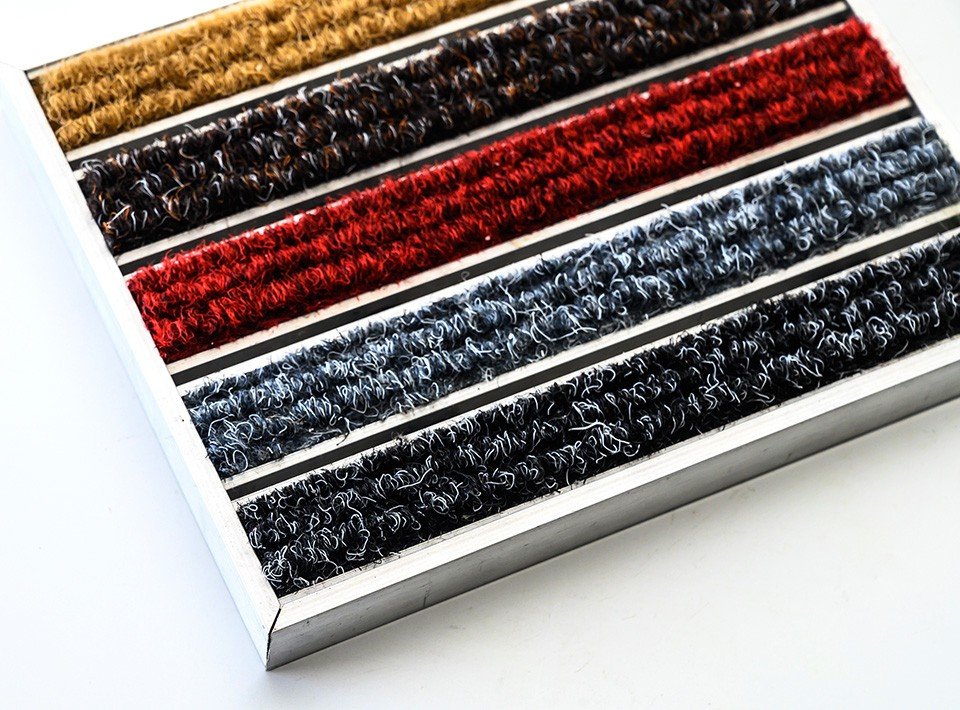

| NeedleFelt Option | Steel/Anthracite/Red/Tabacoo/Yellow |
| Logo Customized | Accepted |
| Product Size | Customized |
| Installation | Place in the notch |
| Cleaning Method | Water flushing or vacuum cleaner |
-

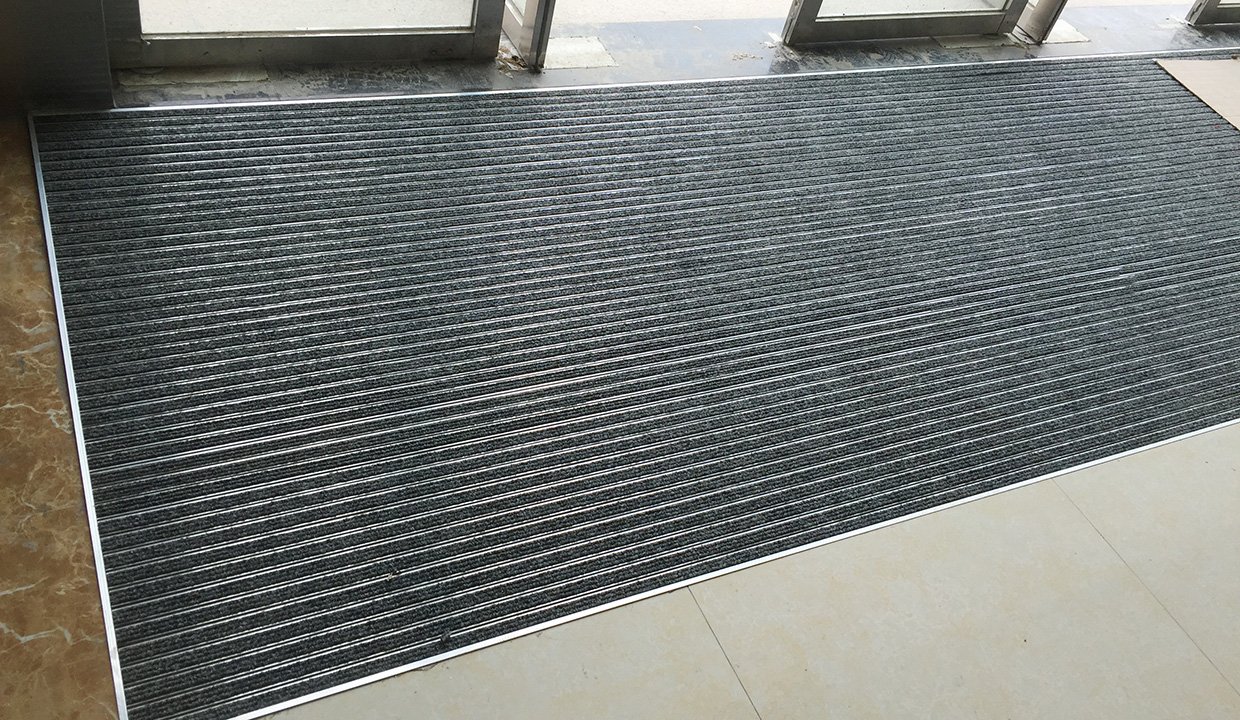

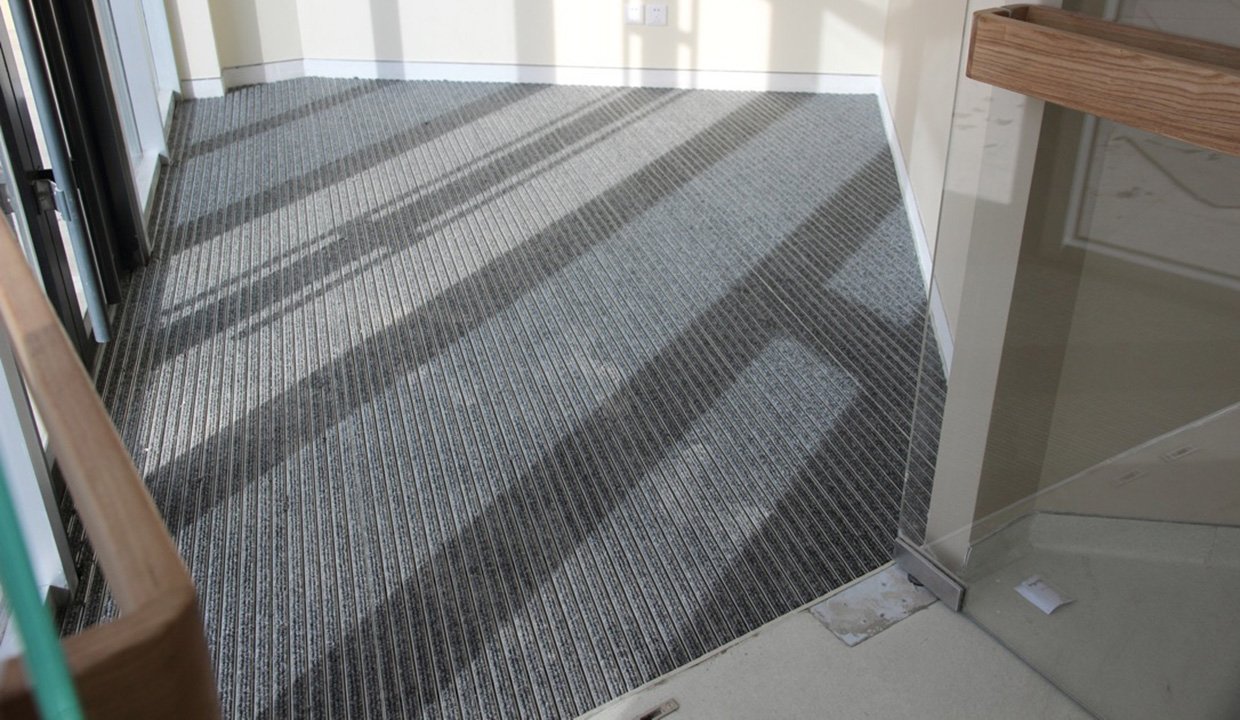

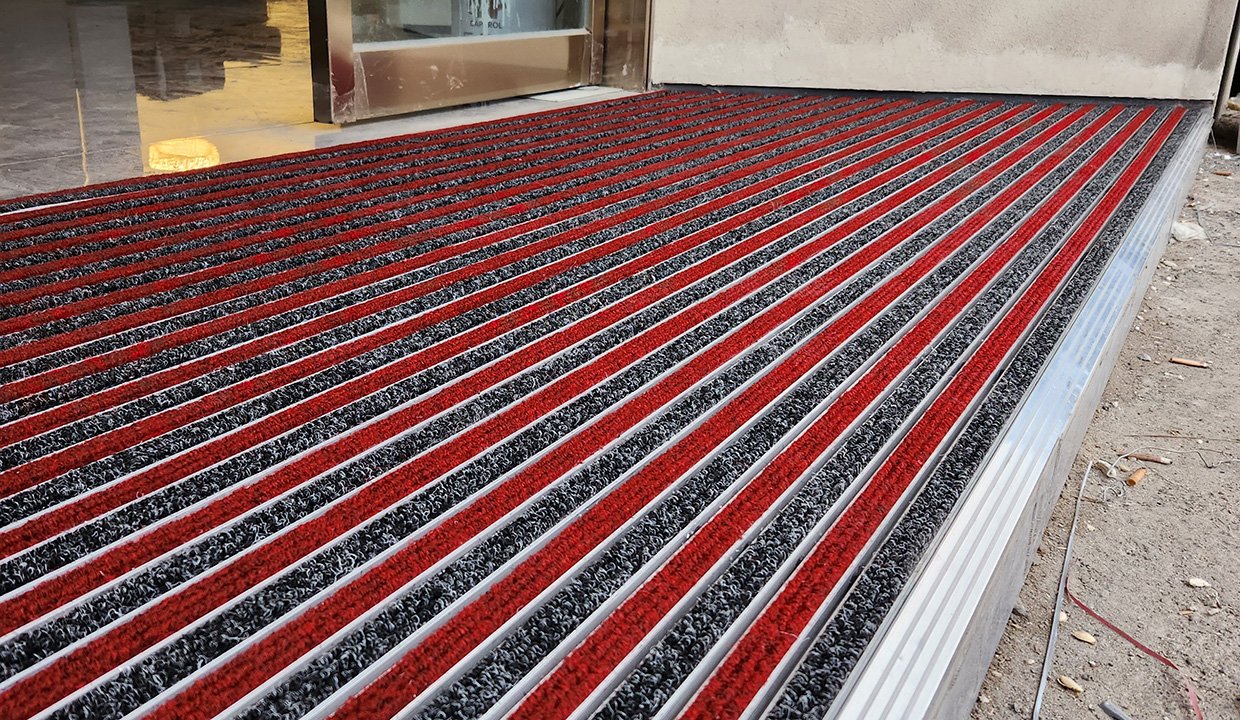

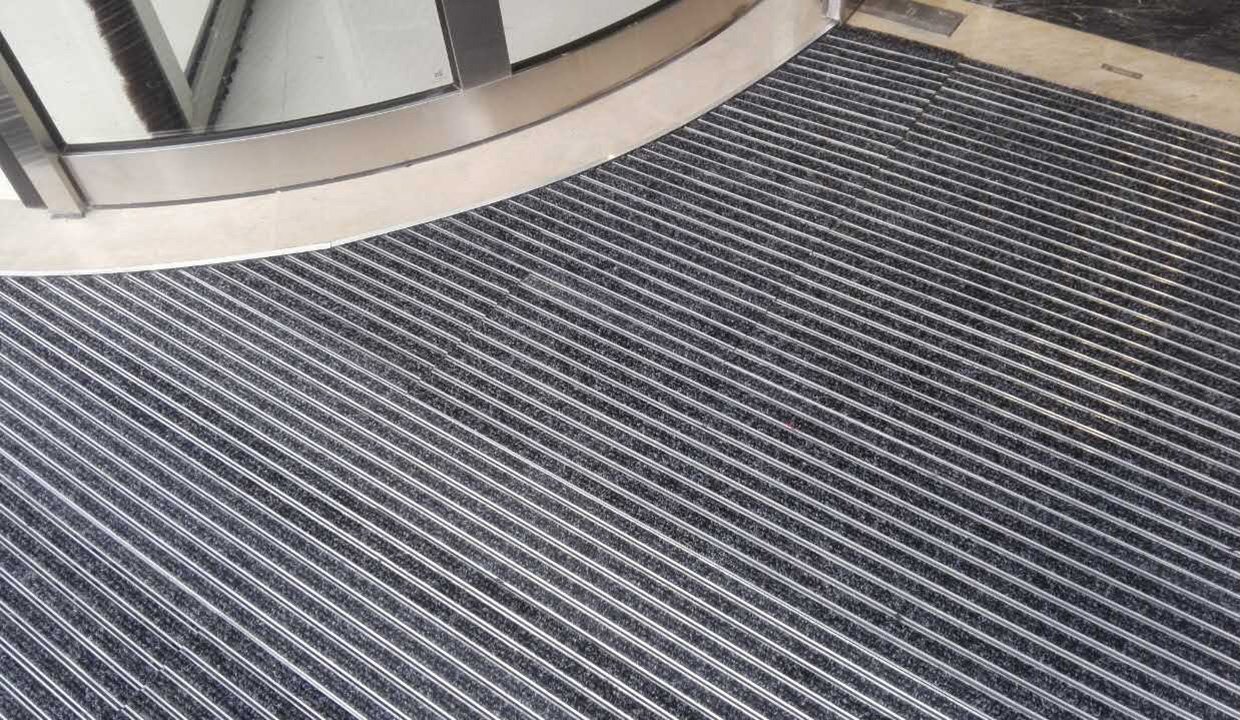

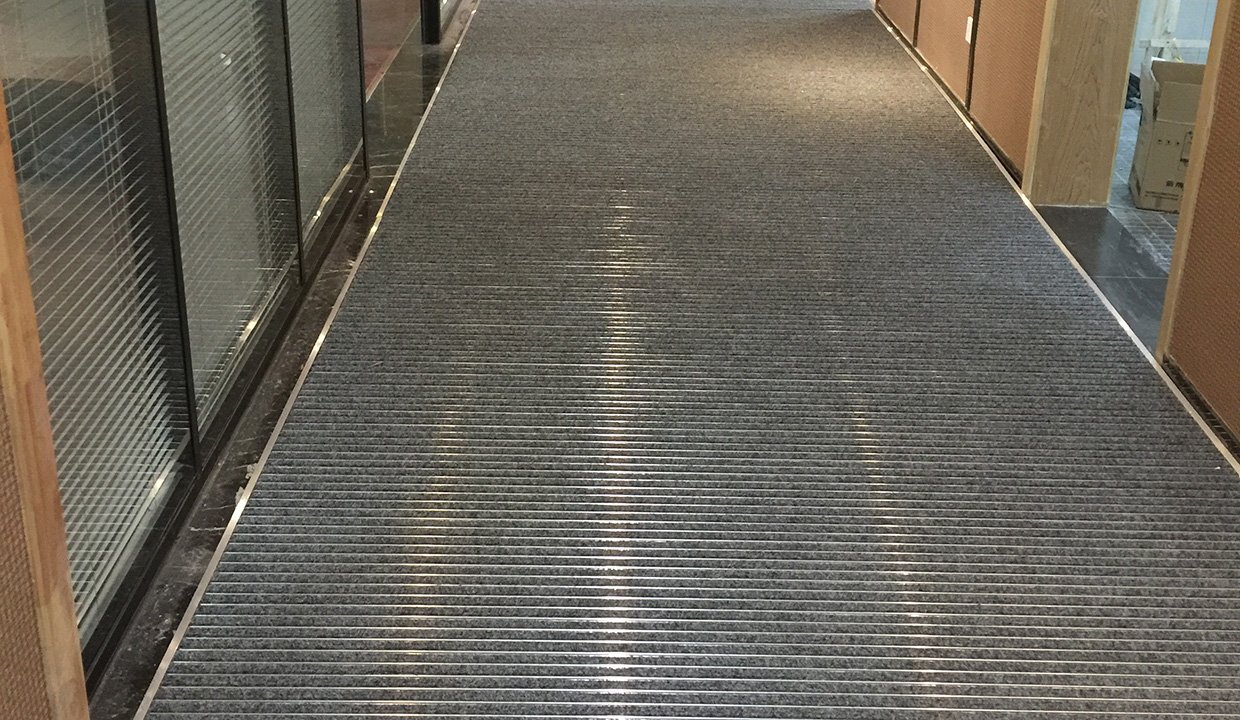

Embedded in the ground
-

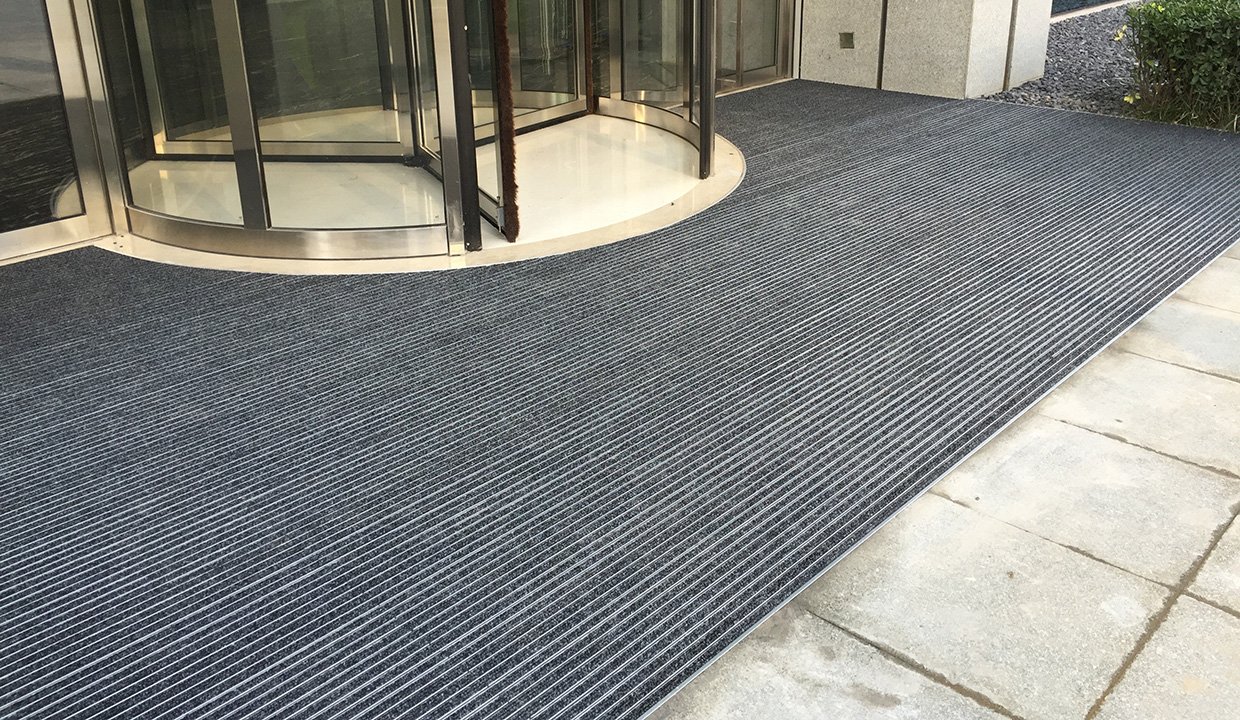

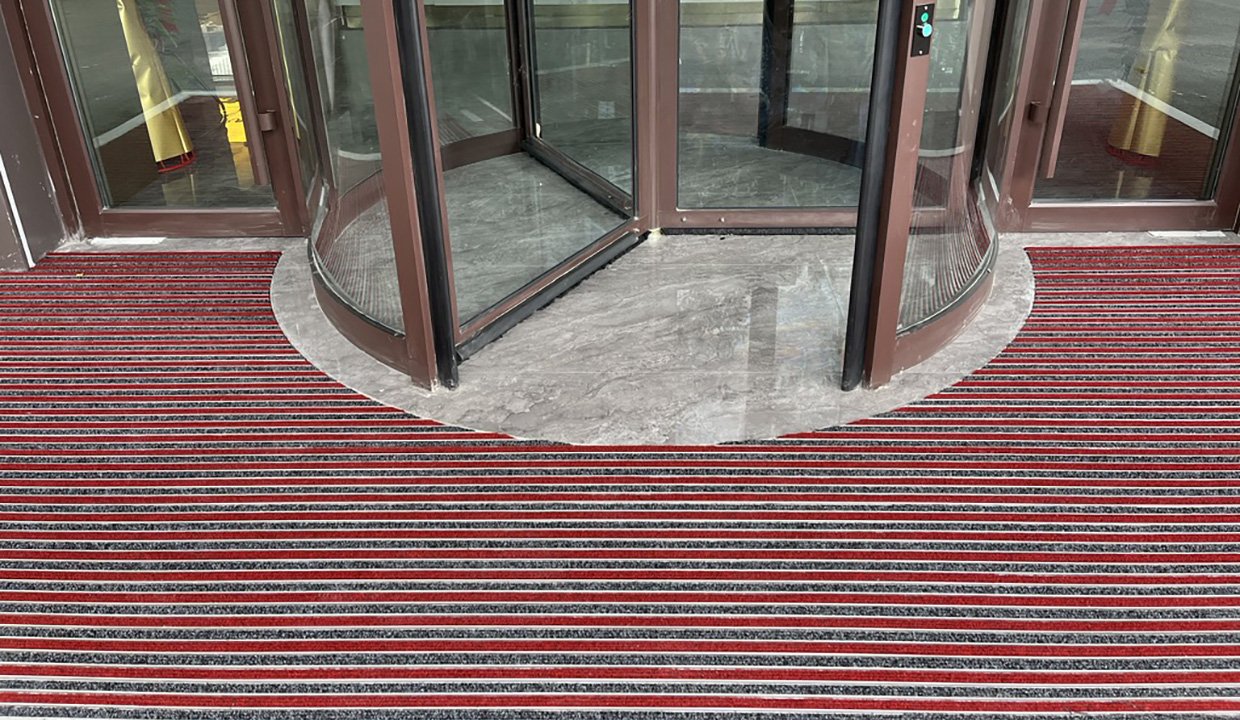

Irregular shape accepted
-
Support customization
-
Directly supplied by the manufacturer
