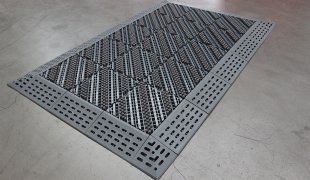

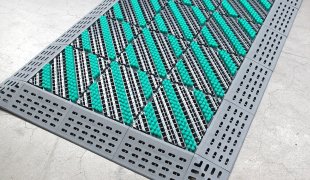

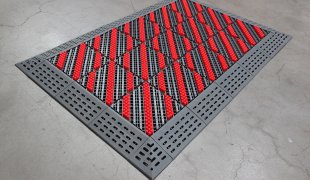

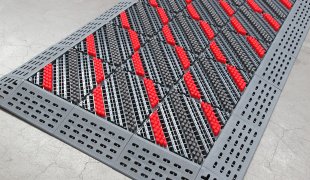

TB Series entrance interlocking matting tiles

100% resin made. Special design with enhanced Brushes. Efficient mat of cleaning soles before you enter the building inside. Anti-Slip, modular interlocking design, unlimited connected in all directions.

Applicable area:

Entrance interlocking matting tiles-TB Tri Brush is widely used in various environments and high traffic areas, such as families, villas, hotels, shopping malls, office buildings, airports, apartments, schools, hospitals, enterprises and other places.

Inquire Now


Entrance interlocking matting tiles-TB Tri Brush frame is made of PE+TPE, 100% resin. The brush is made of PA6, with the excellent flexibility and intensity. After the testing by our lab, the tile can be used in the temperature within -35~70 ℃.


With the accurate plastic model design, we can guanrantee the perfect appearance and the dimentional stability. Excellent interlocking, help you easy connect and install in any direction, and the connection is tight.



The tile is designed with Tri brushes, which can enhance the ability to remove the dust. It has excellent performace of anti-slip special in the snowing or raining enviroment. if necessary, you can cut the tile to suit for your exact area size.



With the automotion production line, RMD has the stable and strict standard.  We have the ability to help you to install the perfect mat when you use our tiles.To save the labor of cleaning, we can give you the economical solutions.

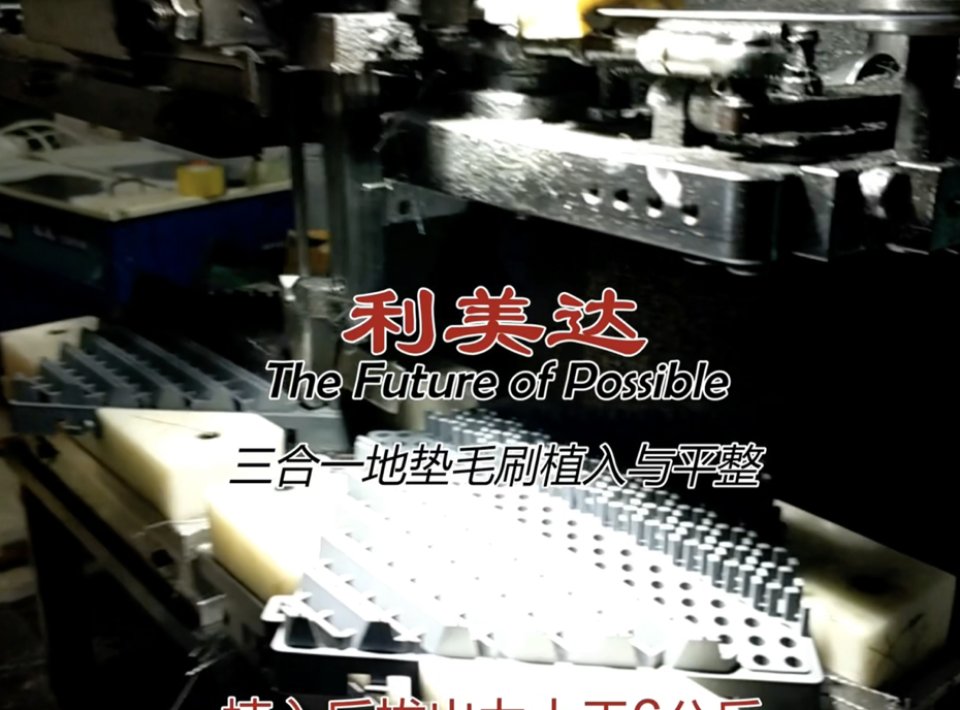

Let us show our production as below:

Application case
Install
Product details

Product Character:

1.100% resin, stable quality specification. Excellent anti-aging ability.
2. Interlocking design, to meet the needs of unlimited free splicing. With Tri-brushes design, tiles will have enhanced dust removing performance.
3. Arbitrary cutting, easy installation. Wear safety protective edging.
4. After assembly, the structure is stable, and the bearing capacity and wear resistance are good.
5. Good weather resistance- Within the range of -35~70 ℃, there is no deformation or bulge, and the performance is stable.
6. Anti slip texture design on the surface can effectively remove the dirt on the sole, hollow out and drain water, keep the mat clean and free of water on the surface. Ensure walking safety.
7. Little batch difference, stable color, long service life.


Product Specification:


   Product Description   SizePackaging Details
 Tile (mm)  150X150

  Carton packaged.

  Carton size: 43X43X54cm.

  Carton capacity:108 pieces

 Female edge (mm)  150X75
 Male edge (mm)  150X75
  Corner(mm)  75X75
Tile Height (mm)
27
Total Weight8.5Kgs/m2
Main MaterialPE+TPE
Dimentional Stability+/- 1.2%
Temperature Bearance
-35~70 ℃
Bearing Capacity≥15 KN/m2
Walking Passenger Capacity
≥6000 per day




  • Connecting Size Unlimited

  • Optional Brush Colors

  • Support Customization

  • Directly Supplied By Manufacturer
